300A AMP Circuit Breaker Fuse Reset 12V-48V DC Car Boat Auto Waterproof
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Weatherproof Rating | IP67 |
| MPN | Does Not Apply |
| Maximum Amperage | 300A |
| Item Width | 48mm |
| Voltage | 12-48V |
| Storage Temperature | -34°C - 149°C |
| Item Height | 9mm |
| Tripping Characteristics | Type A |
| IP Rating | IP67 |
| Electrical Connection | Screw Terminal |
| Country/Region Of Manufacture | China |
| Control Style | Switch |
| Material | Plastic |
| Compatible Wire Gauge (AWG) | 11-15 |
| Application | Vehicle and boat use |
| Operation Method | On/Off |
| Resistance Properties | Dustproof |
| Brand | Unbranded |
| Color | Black |
| Mounting Style | Bolt-On |
| Operating Temperature | -40°C to -100°C |
| Type | Fuse |

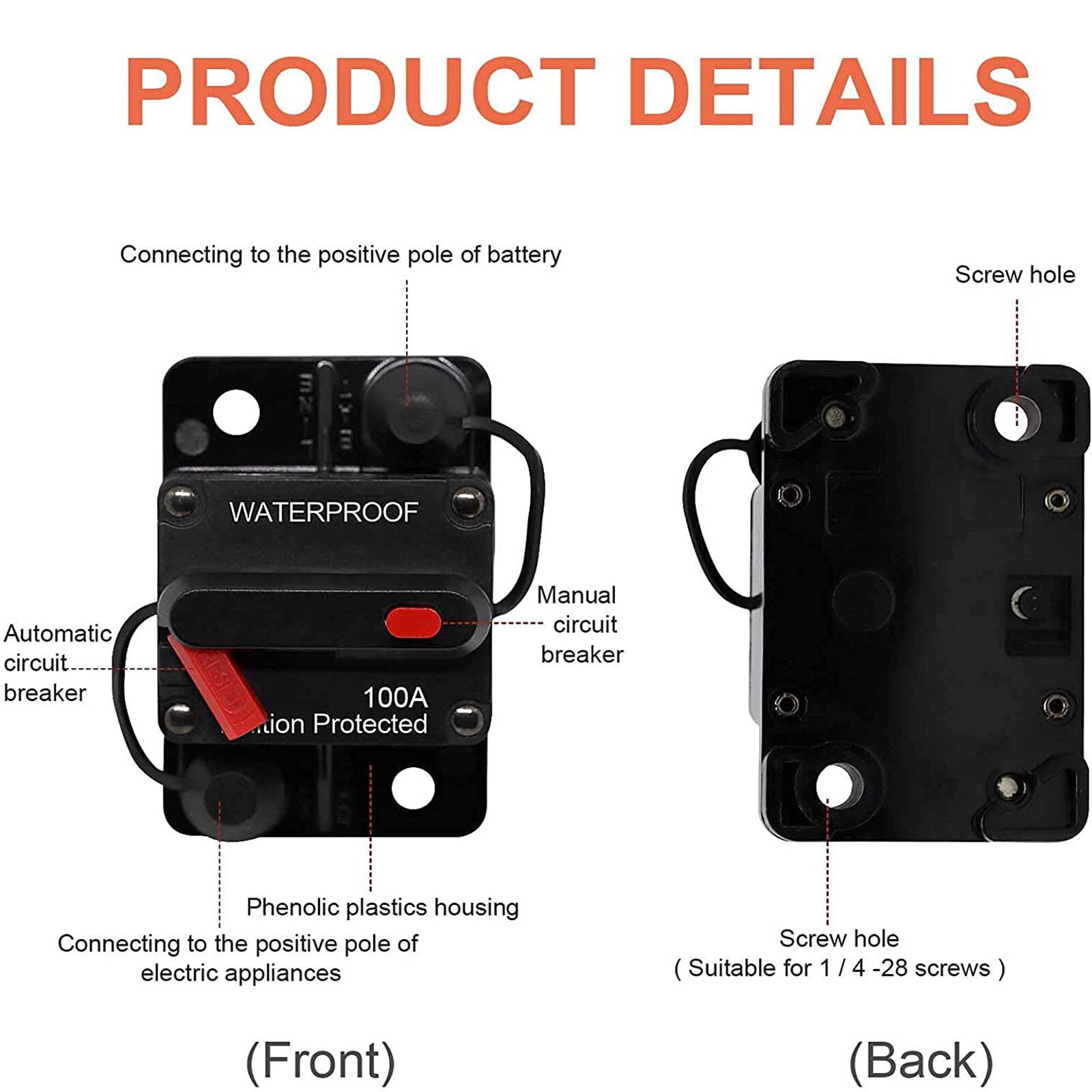

Description: 100% New with High Quality Circuit rating: 30A,40A,50A,60A,70A, 80A, 100,120A,150A 200A ,250A,300A(Optional) Voltage rating: 12-48V DC Interrupt rating: 3000A@30V DC Operating temperature: -32°C to 82°C Storage temperature: -34°C - 149°C Number of Poles: 2 Weatherproof rating: IP67 Certificate：SAE J1627 J1171/UL1500 Color: Black Housing is thermal plastic UL rated 94V0 High Amp Ratings. Manual Reset Switch. Ideal For Harsh Environments. High amp thermal trip circuit breakers with a manual reset switch suitable for use on auxiliary DC electrical systems. Ideal for use in harsh environments, like motorsport, to provide protection in the event of current overload or short circuit. Protective rubber caps prevent unnecessary short circuits. Switchable surface mount circuit breakers typically found in auxilliary and accessory circuits in trucks, buses, motorhomes & marine systems. Sealed, waterproof unit suitable for use in engine compartments and Bilge area's. Manual trip switch enables quick disconnecting of the circuits in case of emergency. Connection Stud Size - M6 x 2 - Nuts supplied with integral lock washers to prevent loosening due to vibration. Note 1.As different computers display colors differently, the color of the actual item may vary slightly from the above images. 2. Please allow 1-3 CM differs due to manual measurement. Thanks for your understanding. Package Include: 1/2 x Manual Reset Switch Note :1PACK is one, not two!!
